Service Life

Estimated Service Life of Nozzles (in hours)
Nozzle Material	Steel Grit/Shot	Silica Sand	Brown Aluminium Oxide
Alumina	20-40	10-30	1-4
Tungsten Carbide	500-800	300-400	20-40
Silicon Carbide	600-1000	400-600	50-100
Boron Carbide	2000-2500	1000-1500	500-1000

Specifications

Type	Code No.	Bore Dia. (mm)	Length (mm)

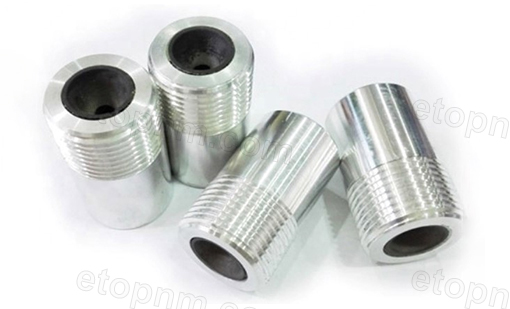

Straight Bore Nozzle Fine Thread 3/4"-14 N.P.S.M.	ET-SBF2.4	2.4	41.5
	ET-SBF3.4	3.4	41.5
	ET-SBF4.8	4.8	41.5
	ET-SBF6.4	6.4	41.5

Please contact us for sizes which don't be mentioned in the above chart.
